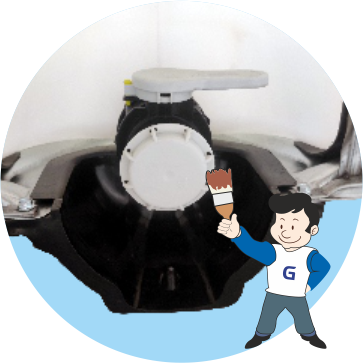

Plastic drip pan. Prevents corrosion /rust formation.

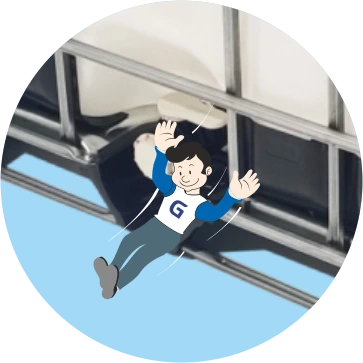

Large space for easy connection easy valve replacement on used IBC's Reconditioner friendle
complinant

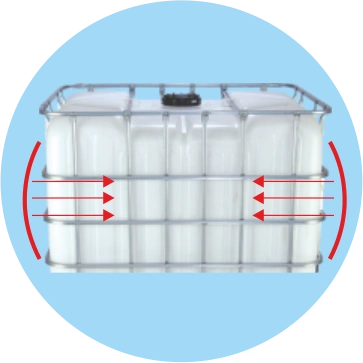

Long side verticals scientifically aligned, more towards centre. Less bulging

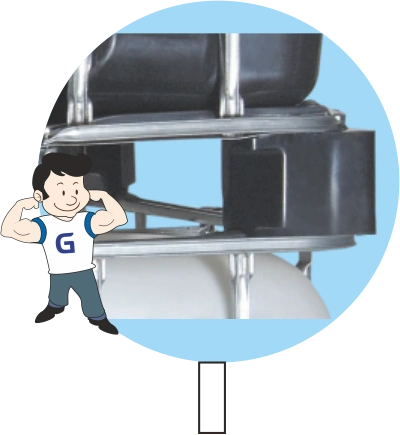

Better designed corner, prevents slippage, higher static/dynamic performance
Light weight smartly profiled, good drainability and inter stackability across different IBC's as well

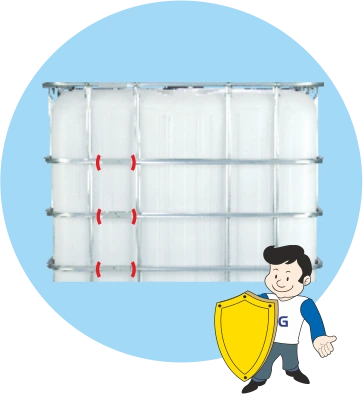

Clinching position rearranged scientifically on sides. Higher resistance to clinch opening

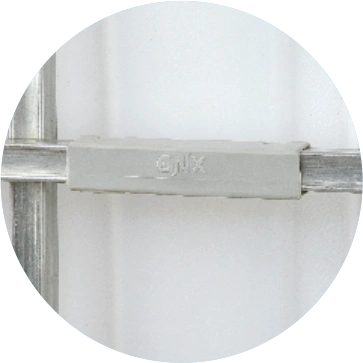

Press-fit new clinch sleeve (Optional).
compliant

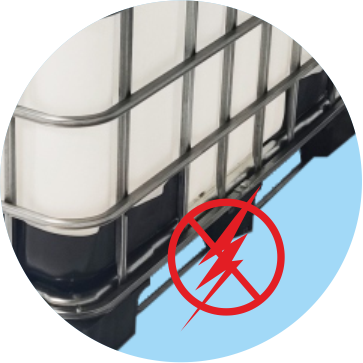

Specially bolted for grounding/earthing
compliant

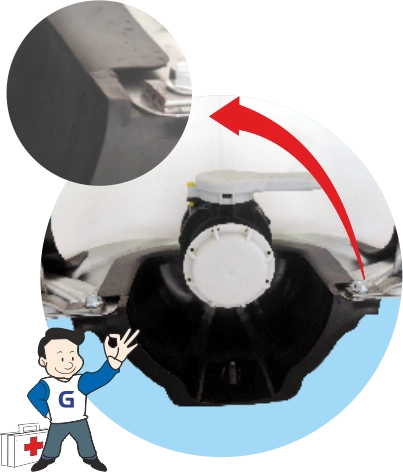

Protectors for cage end near drip area.
compliant

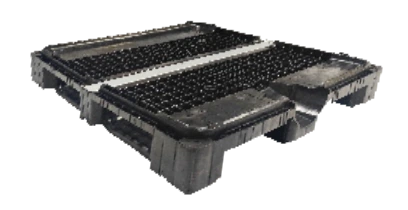

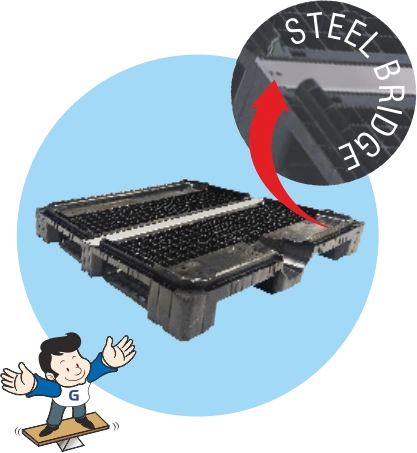

New plastic pallet without in-built steel bridge. Steel reinforcement attached separately. Better performance & eco-frindly recycling possible.
| Capacity | 330 GAL ATI IBC | 275 GAL ATI IBC |
|---|---|---|
| Foot Prints (L X W) | 48" X 40" (1200 X 1000 mm) | 48" X 40" (1200 X 1000 mm) |
| Dimensions (L x W x H) | 48" X 40" X 53" (1200 X 1000 X 1335 mm) | 48" X 40" X 46" (1200 X 1000 X 1155 mm) |
| Cage Profile | 7 X 20 | 6 X 20 |

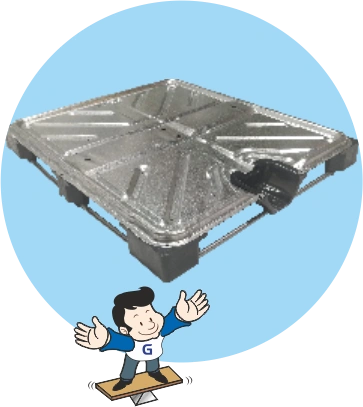

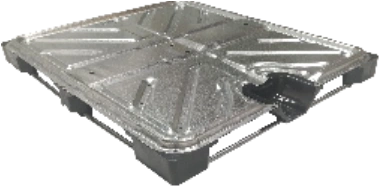

| Pallet | Composite Steel/Full Plastic | Composite Steel/Full Plastic |
| Discharge Valve | 2"/3" Ball or Butterfly type | 2"/3" Ball or Butterfly type |
| Top lid - Plain Fitting & Vented | 6"/9" lid | 6"/9" lid |
| Gasket Filing Lid | EPDM/Viton | EPDM/Viton |
| UN APPROVED |  |
|

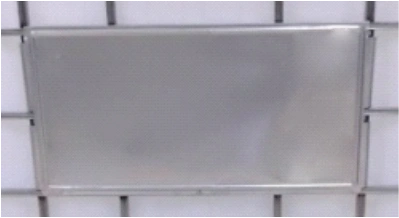

Our comprehensive range of IBC components includes Screw Caps, Discharge Valves, Pallets, Security Flaps, and Label Pallets, each engineered to ensure maximum safety, durability, and operational efficiency. Designed with precision and manufactured using high-quality materials, these essential accessories enhance container performance, secure handling, and reliable discharge control. Together, they contribute to a robust and dependable packaging solution tailored to meet diverse industrial requirements.
